There is a doorway into every grinding hall where the noise changes character, and the old hands stop there on purpose. Inside the door, a ball mill is the loudest thing in the plant, a steel tube ten metres or more long turning at a little under twenty revolutions a minute, lifting and dropping dozens of tonnes of grinding media. Loud is not the same as uniform, and the crew that listens to a mill every shift learns to hear the difference between a mill that is grinding and a mill that is merely turning.

The register of sound belongs to a larger shelf of craft; the same patience that tunes a mill by ear is spent on the hand tools that set and finish fine work.

What the charge sounds like

The sound a ball mill makes is the sound of its charge cascading. Clinker, gypsum and whatever else is being ground cushion the falling balls, so a mill running with the right amount of material inside has a dense, layered roar with a soft edge to it. Run it empty of feed and the cushion disappears: the charge rings off the liners with a hard metallic clatter that an experienced operator will cross the hall to fix, because an empty mill is grinding its own lining. Run it too full and the sound goes muffled and dead, the balls rolling rather than falling, and the mill stops being a grinder and becomes a very expensive tumbler.

The listening is practical, not mystical. The operator is estimating the mill's filling degree from the pitch and texture of the noise, and the estimate is good because the physics underneath it is simple: the charge is loudest when the balls strike bare liner and quietest when they land on material. Between the two extremes there is a band the crew learns by standing in the doorway day after day, and once learned it is remarkably stable. Operators describe the healthy sound differently at different plants, a roar, a rumble, a hiss under the crash, but they describe the same thing: a mill where the balls are falling through air onto feed rather than through air onto steel, and where the power going into the drive is leaving as ground cement rather than as racket.

The compartments inside the drum

A cement mill is not one chamber but usually two, separated by a slotted diaphragm that lets ground material pass while holding the grinding media back. The first chamber carries larger balls, sized to crack clinker nodules down to sand; the second carries smaller media, sometimes cylpebs rather than spheres, to take the fine fraction down to finished cement. Each chamber has its own voice. The first is percussive, the second a hiss under the roar, and an operator who walks the length of the mill can hear whether the diaphragm is passing material the way it should or blinding over.

From the human ear to the electronic one

The industry eventually admitted what the crews already knew and bolted a microphone to it. Electronic ears, essentially calibrated microphones mounted beside each chamber, feed the mill's sound level back to the control room as a continuous signal, and modern mills use it in the feed loop: if the first chamber starts to ring high, the feeder backs off; if it dulls, the feeder pushes. The instrument does not replace the listening habit so much as give it a number, and a good control-room log still records sound alongside kW, feed rate and separator speed because no single reading tells the whole story.

Keeping the charge honest

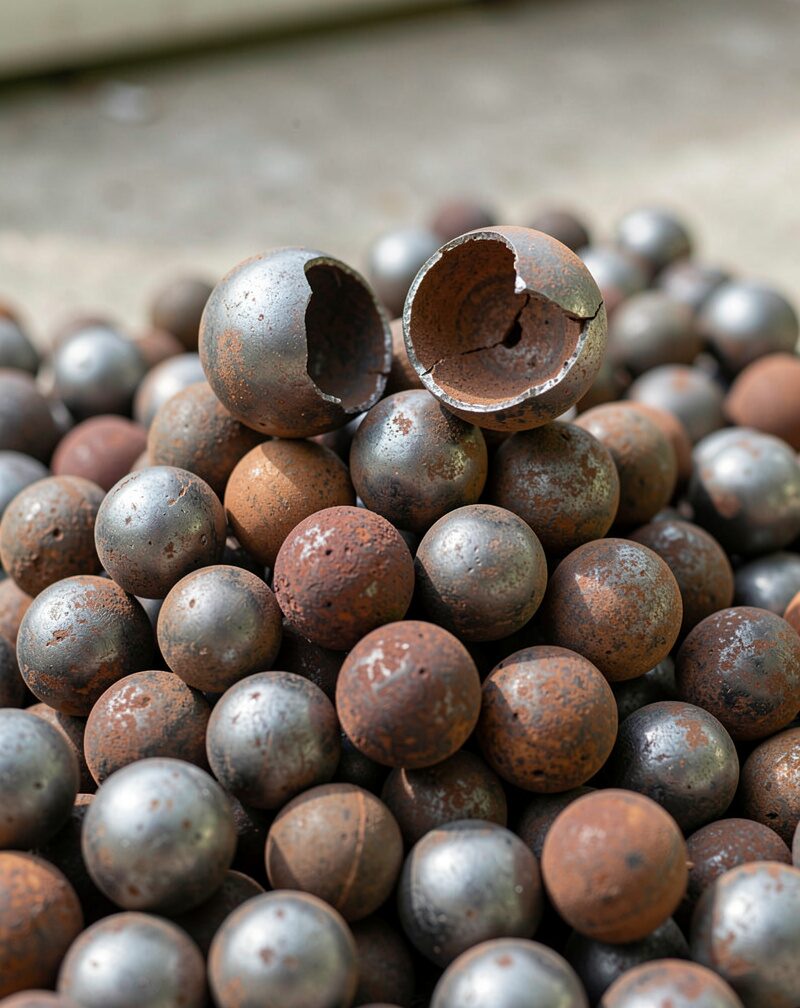

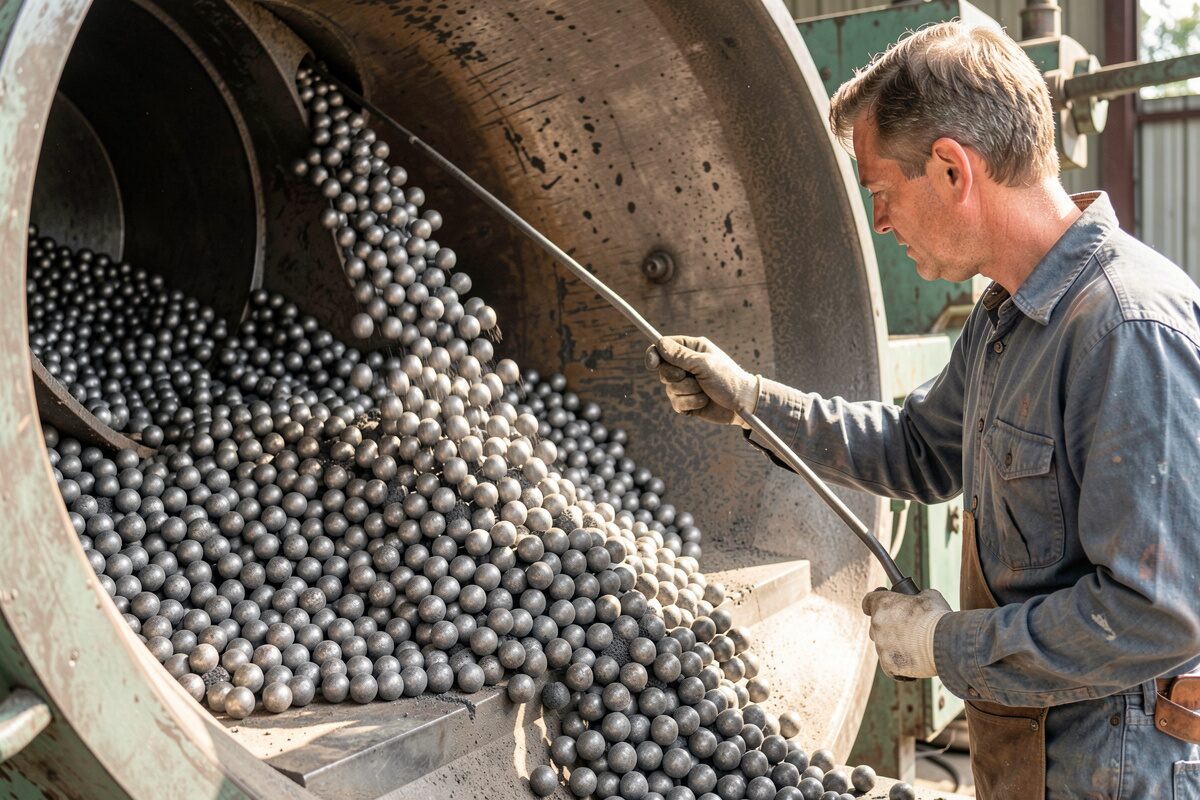

Between the daily listening and the annual inspection sits the quiet arithmetic of the charge itself. Grinding media is consumed: balls wear down millimetre by millimetre, and a mill that is never topped up slowly empties itself of its working population while the power draw and the product drift with it. Plants keep a media schedule the way this register keeps dates, recording how many tonnes of which ball size go in and when, because the gradation inside the mill, large balls for breaking, small ones for finishing, is itself a maintenance item. A charge that started balanced ends the year skewed toward undersize, and the shutdown sorting, when worn media is screened out and weighed, is where the year's grinding is finally audited in kilograms.

What the sound cannot say

Hearing keeps the mill fed; it does not keep it efficient. Sound will tell the operator that material is grinding, but not whether the ball gradation still matches the clinker, whether the liners are worn smooth, or whether the charge has silently lost tonnes of media to wear and needs topping up. Those answers come from stopping the mill, crawling in, and measuring: the wear profile of the liners, the weight and size spread of a ball sample, the condition of the diaphragm slots. The ear gets the shift through the night; the shutdown inspection gets the mill through the year.

The entry the sound leaves behind

At the log we file the ball mill under things that are honest about their condition. A pump hides a worn impeller and a separator hides a worn vane, but a ball mill announces its state to anyone standing in the doorway, which is probably why the oldest listening skill in the plant survives every instrument the industry bolts onto it. The next entry that starts at the door of the grinding hall will not be the last; the mill will still be talking.
