blending The blend

The ash that came free

Fly ash began as a disposal problem and became a concrete material. A note on collection, classes, transport economics and the beneficiation of stored ash.

Logged by Harlan Reyes · checked by Mira Okafor · · 5 min

Fly ash being drawn from a silo into a closed tanker beneath a power station dust collection plant
Fly ash loading into a sealed tanker under the collection hoppers; the silo holds what the flue gave up. Photograph: Harlan Reyes

Fly ash is the rare industrial material that began life as a nuisance. It is the fine fraction that rides up the flue of a coal-fired boiler, too light to fall into the grate, and for decades the only question asked about it was where to put it. The cement and concrete trades answered that question so thoroughly that the material now has specifications, classes, brokers and a price, which makes it one of the stranger success stories in the file this register keeps.

When a lagoon closes and the ground is handed back, the ash's last chapter is written by others; a landscape design planning guide keeps that second life honest.

The particle that survived the boiler

Coal is rock that burns, and what does not burn has to go somewhere. The heavier ash slags down into the furnace bottom; the fine mineral fraction fuses into tiny glass spheres and travels with the flue gas until an electrostatic precipitator or a baghouse pulls it out. That collection step is what turned a waste into a product: ash gathered dry at the hoppers is a clean, consistent powder, while ash sluiced to a lagoon arrives wet, mixed and much harder to sell. The silo under the precipitator is where the material's second life begins.

Two classes, one name

The trade sorts fly ash mainly by the coal it came from. Ash from hard, older coals is rich in silica and alumina and behaves like a classic pozzolan: it does not set on its own but reacts with the lime released by hydrating cement to form more binder. Ash from younger lignitic coals carries enough calcium to have some cementing power of its own. The specification systems in use, ASTM C618 in North America and its cousins elsewhere, write this difference into classes so that a buyer knows which behaviour is being purchased.

The classification matters more than the label suggests, because the two ashes are not interchangeable in a mix design. A low-calcium pozzolanic ash asks for longer curing and rewards patience with durability; a high-calcium ash behaves more like a weak cement and can cut into the room left for other adjustments. The laboratory checks the ash itself before it ever enters a blend: fineness, loss on ignition as a proxy for unburned carbon, and the strength activity index that compares mortar made with the ash against mortar made without it. An ash that fails those tests is not bad luck; it is the wrong product, and the certificate is how the blend plant finds out before the concrete does.

The chemistry that earns its keep

It is worth pausing on how recent this respectability is. A generation ago the same ash was a disposal liability that power stations paid to lose, and the plants that first blended it were taking a waste and betting on its chemistry. The specification systems turned that bet into a trade, and the trade is now large enough that whole regional concrete markets assume its supply.

In concrete, fly ash does three jobs at once. It replaces a share of the Portland cement, which is the expensive and carbon-heavy part of the mix. Its spherical particles lubricate the fresh concrete, improving workability at the same water content. And over months its pozzolanic reaction densifies the hardened paste, lowering permeability and improving resistance to sulfates and the alkali-silica reaction that can crack poorly made concrete. The cost is patience: ash-rich mixes gain strength more slowly in their first days, and the log has noted before that the trade runs on early strength.

Freight decides the map

Ash is free at the silo and dear at the destination. Because it is bulky and cheap, transport decides everything: a works beside a power station blends ash at a profit, while the same ash two hundred kilometres away may price itself out of the mix. This is why ash markets are local, why beneficiation plants that clean and dry stored lagoon ash have grown as easy sources close, and why the geography of fly ash on a map looks less like geology than like a railway timetable.

From lagoon back to product

The newest chapter of the ash story is the rescue of what was thrown away. Decades of ash went to lagoons and fills before anyone priced it, and those deposits are now being mined: excavated, dried, and processed to bring them back to specification. The processing is beneficiation, and it mostly means controlling carbon, because unburned carbon is the contaminant that spoils ash for concrete, interfering with the air entrainment that freeze-thaw durability depends on. Plants burn it off, sieve it out or separate it electrically, and the result is that ash buried as waste in the last century returns to the market as product in this one. The register files this as the ash story's neatest turn: the disposal problem became a resource twice, once at the precipitator and once at the lagoon.

The ash that is left

Not all ash is born equal or stays useful; quality drifts with the coal, the boiler and the collector, and unburned carbon can ruin an air-entrained concrete mix. The register's standing note on the material is the same one the industry keeps relearning: ash is a resource only where someone is paid to keep it consistent, and the moment it is treated as waste again it becomes one. The blend section returns to ash soon, in the larger question of high-volume mixes; this entry merely files where the material comes from and why it ever came free.

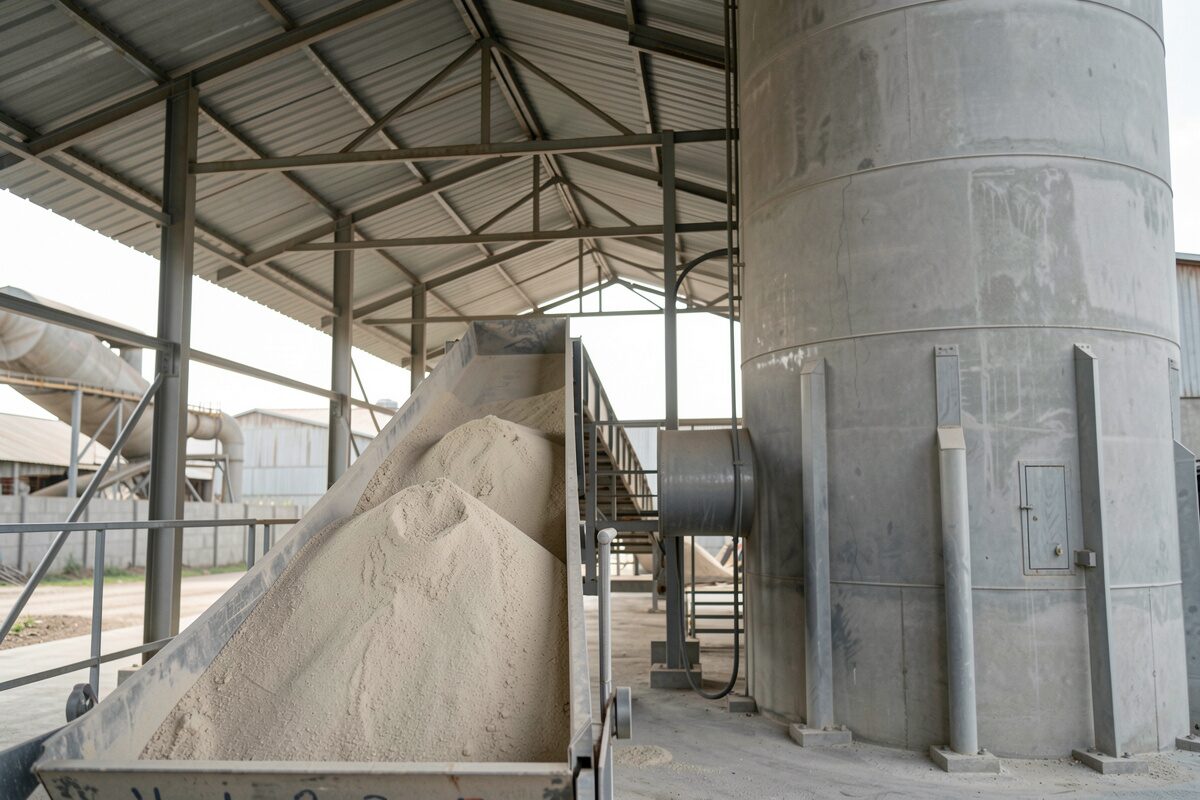

The collection hoppers under the precipitator, and the dry powder that comes off them.
The close view beside it: Fly ash began as a disposal problem and became a concrete material. A note on collection, classes, transport economics and the beneficiation of stored ash.
The collection hoppers under the precipitator, and the dry powder that comes off them. Photograph: Harlan Reyes
